Select of main parts of RC200 machine

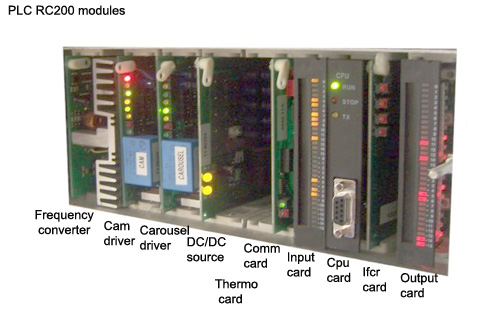

PLC modules , plugged in motherbord on back side . Comm card communicates to CPU unit and informator , idicated by flashing red and green LEDs .
Short description of modules :
Frequency converter : Drum motor drive
Cam driver : Cam EK (brushless) motor drive
Carousel driver : Carousel EK (brushless) motor drive
DC/DC source : Source of 24V DC for inputs and outputs
Thermo card : Regulation temperature of thermosplicer - data from CPU
Comm card : Transfer parameters from informator to CPU and back
Input card : Inputs 24v DC from sensors - standard and hardware
CPU card: Main processor card , consists user program in eprom
IFCR card: Divider ipmpulses and HW outputs transfer
Output card: Outputs 24V DC to operational elements such as valves .
Electronics splicer SAS-EC
Fully controlled by PLC
Adjustable air jet time from informator
Modes SAS-EC, SAS-EC2,SAS-EC2T
Individual settings for special yarns
BDT Informator
Set windings parameters
Display production data
Driving ventilator
Special initialization
Three levels of passvord :
user , service , initservice
